The current technology of machines operates at an accuracy level that seems unbelievable. Most cases of operational accuracy depend on the combination of a servo drive system and its associated motor. Engineers and buyers continue to confuse the functionality and importance of these components because they do not understand their role in achieving optimal machine operation.
- What Are Servo Drives and Motors?
- Key Components of a Servo System
- Real-World Uses of Servo Drives and Motors
- How to Choose the Right Servo System
- The Benefits of Using Servo Drives and Motors
- Precision That Holds Up Under Pressure
- Energy Efficiency
- Speed and Torque Over a Wide Range
- Compact Size, High Output
- Longer Machine Life
- Common Problems With Servo Systems (and How to Avoid Them)
- Conclusion
- FAQs
The errors lead to two consequences, which include decreased machine efficiency, increased energy consumption and expensive production delays. The following explanation provides basic information about servo drives and motors while describing how their control systems enable complete equipment transformation through proper configuration.

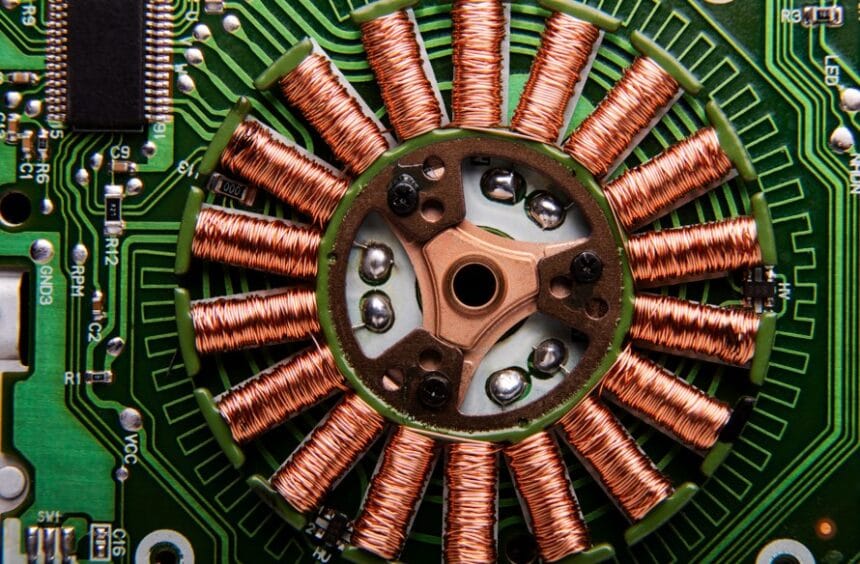

What Are Servo Drives and Motors?
A servo motor is an electric motor built for precise control. The system operates through controlled movements to designated points which include both speed and torque parameters. The system operates at a higher level of control than standard AC and DC motors because of its ability to deliver precise operational controls.
The servo drive serves as the controller which provides operational instructions to the motor. The system operates like a human body, with its brain controlling all actions while its motor system executes them. The motor needs the drive to function, while the drive requires the motor to operate.
The motor operates as a closed-loop system because it continuously shares its position and speed data with the system, which uses that information to adjust its performance in real time.
How a Servo Motor Control System Works
Understanding the complete servo motor control system helps it perform so well.
The Basic Control Loop
- Command input: A controller sends a target position or speed signal to the drive.
- Drive response: The drive converts the signal into electrical power and sends it to the motor.
- Motor action: The motor moves the load accordingly.
- Encoder feedback: The encoder reads the actual position and reports it back to the drive.
- Error correction: The drive compares command vs. actual and adjusts instantly.
Key Components of a Servo System
Component | Role |
Servo Motor | Converts electrical energy into precise mechanical movement |
Servo Drive | Controls power delivery and processes feedback |
Encoder | Measures shaft position and speed |
Controller / PLC | Sends commands to the drive |
Cables & Connectors | Carry signals and power between components |
Real-World Uses of Servo Drives and Motors
Servo systems are everywhere. Here are the industries that rely on them most:
Manufacturing and Automation
Servo drives and motors power all CNC machines, robotic arms, pick-and-place systems, and conveyor indexing systems. The need for precision here creates an absolute requirement.
Packaging
The three systems, which include filling machines and labelling systems and wrapping equipment, need to have their exact positions marked.
Printing
Servo systems provide precise control over speed and position, which benefits all components of print heads and paper feeders and registration systems.
Medical Equipment
All surgical robots and infusion pumps and diagnostic scanners need to have precise and uninterrupted movement for their operations. The system provides safe operational capacity through its servo systems.
Food and Beverage
The servo motors in portioning, slicing, and bottling systems maintain operational efficiency while reducing product waste.
Suppliers like Neotech Engineering work across these industries, providing servo drive and motor solutions tailored to specific machine requirements.
How to Choose the Right Servo System
Not every servo motor control system suits every application. Here are the main things to consider:
- Torque requirements: What load does the motor need to move? Continuous torque matters more than peak torque for most applications.
- Speed range: Do you need very high speeds, very low speeds, or both?
- Feedback type: Absolute encoders cost more but retain position after power loss. Incremental encoders are more common and affordable.
- Drive compatibility: The drive and motor must be matched. Mismatched systems cause poor performance or damage.
- Environmental conditions: Will the motor be exposed to dust, moisture, or heat? The IP rating of the motor matters here.
Collaborating with a seasoned supplier such as Neotech Engineering eliminates the uncertainty associated with selection. Their team assesses the entire application before recommending a system rather than just selling off-the-shelf parts.
The Benefits of Using Servo Drives and Motors
So why choose a servo system over a simpler alternative? The answer comes down to what your machine actually needs.
Precision That Holds Up Under Pressure
Servo motors maintain accuracy even when loads change. A stepper might slip. A servo corrects itself. High-speed production lines show enormous operational differences because of that distinction.
Energy Efficiency
Servo drives only draw the power the motor needs at any given moment. This power approach provides much better efficiency compared to operating a motor at maximum capacity throughout the entire time.
Speed and Torque Over a Wide Range
Servos operate effectively between their minimum speed and maximum speed limits. Their motor configuration enables them to maintain complete torque output throughout that operational range, which most other motors do not achieve.
Compact Size, High Output
Servo motors tend to be smaller and lighter than comparable motors. That saves space on the machine and makes integration easier.
Longer Machine Life
Servo systems extend machine life because their self-correcting function prevents mechanical stress from both missed steps and overloading conditions.
Common Problems With Servo Systems (and How to Avoid Them)
Even excellent servo motor control systems can run into trouble. Most issues come down to a few root causes:
- Tuning errors: If the drive is not tuned correctly for the motor and load, you get oscillation, overshoot, or a sluggish response. Proper commissioning matters.
- Wiring issues: Noise on encoder cables is a common cause of faults. Use shielded cables and proper earthing.
- Overheating: Running a servo beyond its continuous duty rating leads to thermal shutdowns. Size the motor correctly from the start.
- Mechanical mismatch: A servo cannot rectify a badly designed mechanical system. If the gearbox is worn or the coupling is loose, the precision is lost.
Conclusion
The core components of modern precision machinery systems include servo drives and motors. The system for controlling servo motors allows machines to perform precise movements in robotic arms, packaging lines, and CNC machines. The closed-loop feedback system, energy efficiency, and load change adaptability make servos the preferred option for advanced motion control systems.
The correct system selection together with its proper installation leads to machine performance, while improper selection results in ongoing operational problems. Neotech Engineering has established itself as a reliable brand which provides proper guidance and superior components to customers who operate in global markets.
FAQs
1.What is the difference between a servo drive and a servo motor?
The servo motor functions as the mechanical element which generates motion. The electronic component that manages and runs the motor is the servo drive. The two components operate as a system, with a drive that sends commands to the motor for execution and receives feedback to maintain system precision.
2.What is a servo motor control system?
A servo motor control system functions as a closed-loop system that integrates motor drives and encoders to operate together. The encoder monitors the motor’s position and sends updates to the drive, which makes immediate corrections to any detected errors. The precise functioning of servo systems results from this particular mechanism.
3.Where are servo drives and motors used?
Servo systems operate in multiple fields, including CNC machining, robotics, packaging, printing, medical equipment, food processing, and various other sectors. The presence of a servo drive together with a motor exists in any situation which requires accurate and repeatable motion control.
4.Are servo motors better than stepper motors?
Servo motors provide superior performance for applications which require precise accuracy and rapid operation and handling of different weight loads. Servo motors use feedback to confirm every movement, while steppers do not. Steppers are simpler and cheaper for basic tasks, but servo motors are far more reliable when precision matters.
